Description Sets the parameters of a specific location/orientation operation for a FRED entity.
Syntax SetOperation n, indx, op
Parameters n As Long Node number of the FRED object.
indx As Long Zero-based index of Location/Orientation primitive operation.
op As T_OPERATION Structure containing the new Location/Orientation primitive operation data for the FRED entity.
Remarks This subroutine sets a specific Location/Orientation modifier in a specified FRED entity. If there is a problem, the subroutine posts an error and returns without modifying the FRED object's Location/Orientation.

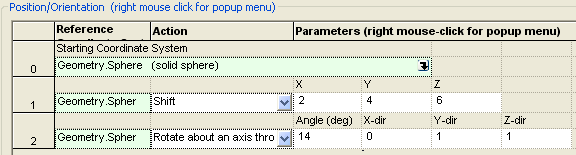

Example Consider an entity of interest with the following position/orientation operations list as seen in the GUI:
The following script will retrieve the specifications for operation #1 (the Shift) using the GetOperation subroutine, modify the operation's parameters and then set the modified values back to the entity using the SetOperation subroutine.
Sub Main
Dim op As T_OPERATION Dim pNode As Long
'Get the node number for the entity being modified. pNode = FindFullName("Geometry.Plane")
'Get operation #1 from the entity. This is the Shift operation. GetOperation pNode, 1, op
'Modify the shift values for this operation. 'Note that although the T_OPERATION structure has 13 "val" members, the Shift operation 'type only uses val1, val2 and val3. The remaining "val" members are ignored and therefore 'do not need to be set. op.val1 = 4 op.val2 = 8 op.val3 = 12
'Now send the modified values back to the entity and update the document. SetOperation pNode, 1, op Update
End Sub

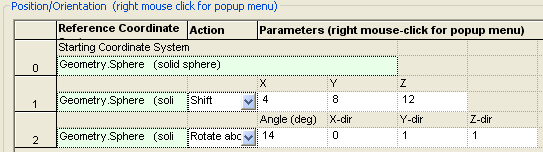

After running this script the operations list for the entity looks like the following:
See Also Scripting Position/Orientation Operations
|
