Create - New Prism

Control	Inputs / Description	Defaults
Parent	Displays the name of the tree object that will be the parent of the new prism.	If the Create New Prism dialog was opened by right mouse clicking in the object tree, the parent is the name of the selected tree object. Otherwise, the Geometry folder is the parent.
Name	Displays the name of the prism.	Prism n
Description	Displays the description of the prism.

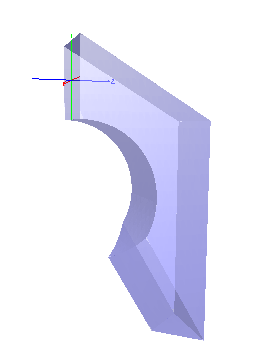

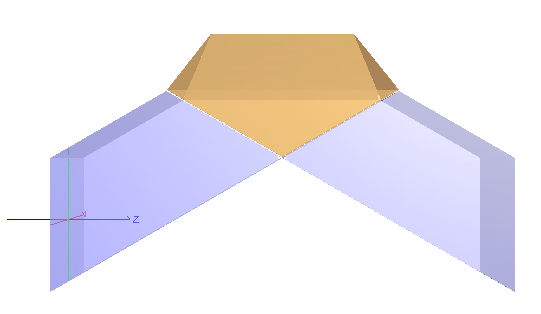

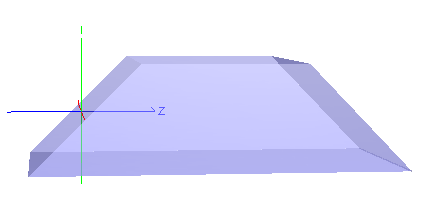

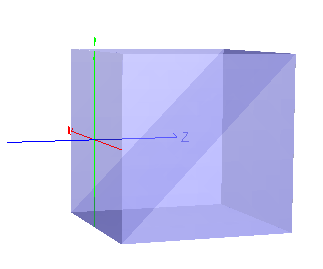

Type	The list of predefined prisms includes the following: •Abbe (image flip) •Amici (90 deg deviation) •Corner Cube (180 deg deviation) •Cube Beamsplitter (split beam) •Dove (image rotation) •Equilateral (fixed rotation) •Fresnel Rhomb (image rotation) •General (user sets angle) •Leman (image flip) •Pechan (image rotation) •Penta Prism (90 deg deviation) •Porro (180 deg deviation) •Reversion (image rotation) •Right Angle (90 deg deviation) •Schmidt (45 deg deviation) •Wedge (user sets deviation)	Right Angle
All non-optical surfaces are absorbing	Check this to make all non-optical surfaces absorbing. Otherwise, non-optical surfaces are uncoated.	Checked
Auxiliary input 1 (not shown above)	Allows entry of extra data needed to define the prism. Always labeled with the type of data needed.	Varies
Auxiliary input 2 (not shown above)	Allows entry of extra data needed to define the prism. Always labeled with the type of data needed.	Varies
Semi-Aperture of Input Face
X, Y	Defines the input face semi-apertures in the X & Y directions.	1, 1
Materials
Glass Name	Displays the name of the prism material.	Simple Glass
Glass Catalog	Displays the name of the catalog that holds the prism material.	Current
Glass button	Displays a Material dialog that allows a change of the prism material.
Immersion Name	Displays the name of the material the prism is immersed in.	Air
Immersion Catalog	Displays the name of the catalog that holds the immersion material.	Current
Immersion button	Displays a Material dialog that allows a change of the immersion material.
Location/Orientation
Location/Orientation of the Center of the Input Face	Specifies the Location and Orientation of the prism with the center of the input face as the origin.	Starting Coordinate System: Geometry

OK	Accept settings and close dialog box.
Cancel	Discard settings and close dialog box.
Apply	Accept settings and keep dialog box open.
Help	Access this Help page.
