T_RAYFILTEROP (Legacy)

Navigation: Scripting Reference Manual > Data Structures > T_RAYFILTEROP (Legacy)

Note - this section describes the ray filter dialog and opCodes used in FRED v23.10 and prior releases. The description of the new dialog and opCodes used after FRED v23.10 is available here. FRED scripts created with these older opCode's will continue to work but we do not recommend referencing them in new scripts.

Description

This data structure defines a single ray selection filter operation (ex. "Rays on the specified surface") that gets applied during ray-based analyses (ex. Irradiance) or a ray-manipulation operation (ex. Redraw ray history). Consider the GUI dialog below for defining a single ray selection filter operation. Each of the entries in the dialog corresponds to a single member of the T_RAYFILTEROP data structure, as annotated below, though not all ray selection filter criteria require a datum and/or stringDatum entry. In the example GUI below, note that there is a "<= n" condition within the criteria definition. The T_RAYFILTEROP data structure includes a wantOppositeOperation member which, when set to True, has the effect of changing the criteria from "<= n" to "> n".

Definition

Type T_RAYFILTEROP

datum As Double
combineCode As Long
opCode As Long
stringDatum As String

text As String
wantOppositeOperation As Boolean

Members

datum

This member contains the numeric value associated with the ray selection criteria being defined and whose meaning is determined by the opCode member. Note that not all ray selection criteria definitions require a numeric datum value. The table below indicates which criteria require a datum entry.

combineCode

This member specifies how the criteria is combined with the results of any previous ray selection criteria. This entry is superfluous for the first ray selection criterion, as there are no previous criteria to be combined with. Possible values are:

Value	Meaning
0	AND
1	OR

opCode

This member specifies the type of ray selection criterion being defined. Refer to the table below for a complete list of opCode values and their associated filter criteria.

stringDatum

This member is used to specify entity names that are associated with some criteria. For example, definition of a "Rays on a specified surface" ray selection criterion requires that a node be provided (the "surface" in the criteria definition). The full name of the corresponding node of interest is specified using the stringDatum member. Refer to the table below, which indicates whether a stringDatum entry is required for any given ray selection criterion.

text

This member is not used with Legacy OpCodes and can be ignored.

wantOppositeOperation

When True, this member will negate the conditional logic in the ray selection criteria. When the conditional logic of the ray selection criteria is intended to be applied as-is, this member should be set to False. The behavior change of the conditional logic as it pertains to wantOppositeOperation is listed in the table below.

Conditional Logic	When wantOppositeOperation = True
<= (less than or equal to)	> (greater than)
== (equal to)	!= (not equal to)

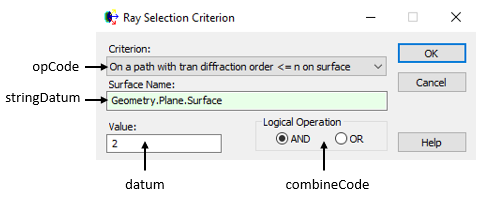

For example, a common ray selection criteria is "Rays on the specified surface". In order to specify a ray selection criteria of the type, "Rays NOT on the specified surface", the T_RAYFILTEROP data structure configuration would be the following, where the wantOppositeOperation is used to flip the conditional logic:

Member	Value
opCode	3
stringDatum	"Geometry.Example.Surface"
wantOppositeOperation	True

Refer to the table below for a full listing of the available ray selection filter criteria.

Remarks

The table below lists the correspondence between the opCode values and their associated ray selection filter criteria meanings

Filter Criteria
All rays	Op code	0
	Datum	Not applicable
	String Datum	Not applicable
Coherent rays	Op code	1
	Datum	Not applicable
	String Datum	Not applicable
Polarized rays	Op code	2
	Datum	Not applicable
	String Datum	Not applicable
Rays on the specified surface	Op code	3
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Rays from the specified source	Op code	4
	Datum	Not applicable
	String Datum	Full name of the source ex. "Optical Sources.Source 1" ex. GetFullName( sourceNode )
Rays in the specified material	Op code	5
	Datum	Not applicable
	String Datum	Name of the material ex. "Air" ex. GetMaterialName( matNode )
Every N'th ray	Op code	6
	Datum	N'th ray
	String Datum	Not applicable
Incoherent power <= value	Op code	7
	Datum	Power value
	String Datum	Not applicable
Optical path length <= value	Op code	8
	Datum	Path length value
	String Datum	Not applicable
Wavelength (um) <= value	Op code	9
	Datum	Wavelength value
	String Datum	Not applicable
X <= value in specified coordinate system	Op code	10
	Datum	X value
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Y <= value in specified coordinate system	Op code	11
	Datum	Y value
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Z <= value in specified coordinate system	Op code	12
	Datum	Z value
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
X direction component <= value in specified coordinate system	Op code	13
	Datum	X direction value
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Y direction component <= value in specified coordinate system	Op code	14
	Datum	Y direction value
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Z direction component <= value in specified coordinate system	Op code	15
	Datum	Z direction value
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Radial distance from X axis <= value in specified coordinate system	Op code	16
	Datum	Radial distance
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Radial distance from Y axis <= value in specified coordinate system	Op code	17
	Datum	Radial distance
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Radial distance from Z axis <= value in specified coordinate system	Op code	18
	Datum	Radial distance
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Radial distance from X direction <= value in specified coordinate system	Op code	19
	Datum	Radial direction distance
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Radial distance from Y direction <= value in specified coordinate system	Op code	20
	Datum	Radial direction distance
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Radial distance from Z direction <= value in specified coordinate system	Op code	21
	Datum	Radial direction distance
	String Datum	Full name of the coordinate system node ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
Rays on the specified ray path	Op code	22
	Datum	Ray path number
	String Datum	Not applicable
Scattered rays	Op code	23
	Datum	Not applicable
	String Datum	Not applicable
Scattered ancestry equal to value	Op code	24
	Datum	Scatter ancestry value
	String Datum	Not applicable
Scattered ancestry <= value	Op code	25
	Datum	Scatter ancestry value
	String Datum	Not applicable
Specular rays	Op code	26
	Datum	Not applicable
	String Datum	Not applicable
Specular ancestry equal to value	Op code	27
	Datum	Specular ancestry value
	String Datum	Not applicable
Specular ancestry <= value	Op code	28
	Datum	Specular ancestry value
	String Datum	Not applicable
Total ray intersection count == value	Op code	29
	Datum	Total intersection count value
	String Datum	Not applicable
Total ray intersection count <= value	Op code	30
	Datum	Total intersection count value
	String Datum	Not applicable
Consecutive ray intersection count == value	Op code	31
	Datum	Consecutive intersection count value
	String Datum	Not applicable
Consecutive ray intersection count <= value	Op code	32
	Datum	Consecutive intersection count value
	String Datum	Not applicable
Rays with ray errors	Op code	33
	Datum	Not applicable
	String Datum	Not applicable
Ray number N	Op code	34
	Datum	Ray number
	String Datum	Not applicable
Ray numbers <= N	Op code	35
	Datum	Ray number
	String Datum	Not applicable
Absorbed rays	Op code	36
	Datum	Not applicable
	String Datum	Not applicable
Diffract ancestry equal to value	Op code	37
	Datum	Diffraction ancestry value
	String Datum	Not applicable
Diffract ancestry <= value	Op code	38
	Datum	Diffraction ancestry value
	String Datum	Not applicable
Total ancestry == value	Op code	39
	Datum	Total ancestry value
	String Datum	Not applicable
Total ancestry <= value	Op code	40
	Datum	Total ancestry value
	String Datum	Not applicable
Rays assigned to a ray path	Op code	41
	Datum	Not applicable
	String Datum	Not applicable
On a path including a specified surface	Op code	42
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with event count == value	Op code	43
	Datum	Event count value
	String Datum	Not applicable
On a path with event count <= value	Op code	44
	Datum	Event count value
	String Datum	Not applicable
On a path with scatter event on surface	Op code	45
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with scatter refl on a surface	Op code	46
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with scatter tran on a surface	Op code	47
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with specular event on surface	Op code	48
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with specular refl on surface	Op code	49
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with specular tran on surface	Op code	50
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract event on surface	Op code	51
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract refl on surface	Op code	52
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract tran on surface	Op code	53
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract order == Value on surface	Op code	54
	Datum	Diffraction order
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract order <= Value on surface	Op code	55
	Datum	Diffraction order
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract refl order == Value on surface	Op code	56
	Datum	Diffraction order
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract refl order <= Value on surface	Op code	57
	Datum	Diffraction order
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract tran order == Value on surface	Op code	58
	Datum	Diffraction order
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with diffract tran order <= Value on surface	Op code	59
	Datum	Diffraction order
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with specular tran event count ==	Op code	60
	Datum	Event count
	String Datum	Not applicable
On a path with specular tran event count <=	Op code	61
	Datum	Event count
	String Datum	Not applicable
On a path with specular refl event count ==	Op code	62
	Datum	Event count
	String Datum	Not applicable
On a path with specular refl event count <=	Op code	63
	Datum	Event count
	String Datum	Not applicable
On a path with scatter tran event count ==	Op code	64
	Datum	Event count
	String Datum	Not applicable
On a path with scatter tran event count <=	Op code	65
	Datum	Event count
	String Datum	Not applicable
On a path with scatter refl event count ==	Op code	66
	Datum	Event count
	String Datum	Not applicable
On a path with scatter refl event count <=	Op code	67
	Datum	Event count
	String Datum	Not applicable
On a path with diffract tran event count ==	Op code	68
	Datum	Event count
	String Datum	Not applicable
On a path with diffract tran event count <=	Op code	69
	Datum	Event count
	String Datum	Not applicable
On a path with diffract refl event count ==	Op code	70
	Datum	Event count
	String Datum	Not applicable
On a path with diffract refl event count <=	Op code	71
	Datum	Event count
	String Datum	Not applicable
Rays that have volume scattered	Op code	72
	Datum	Not applicable
	String Datum	Not applicable
On a path with ray count ==	Op code	73
	Datum	Ray count
	String Datum	Not applicable
On a path with ray count <=	Op code	74
	Datum	Ray count
	String Datum	Not applicable
On a path with ray power ==	Op code	75
	Datum	Ray power
	String Datum	Not applicable
On a path with ray power <=	Op code	76
	Datum	Ray power
	String Datum	Not applicable
On a path with specular TIR on surface	Op code	77
	Datum	Not applicable
	String Datum	Full name of the surface ex. "Geometry.Example.Surface" ex. GetFullName( surfNode )
On a path with specular TIR event count ==	Op code	78
	Datum	Event count
	String Datum	Not applicable
On a path with specular TIR event count <=	Op code	79
	Datum	Event count
	String Datum	Not applicable

Example - Scattered Rays

The following example demonstrates the use of the ray filter operation commands as they relate to detector entities. In this example the operation count for a detector entity is retrieved and the operation at index 0 is retrieved and modified before the analysis is performed.

Sub Main

Dim rfOp As T_RAYFILTEROP

Dim deNode As Long, opCount As Long, cnt As Long, arnNode As Long

Dim success As Boolean

deNode = FindFullName( "Analysis Surface(s).Cylinder Detector Entity" )

opCount = DEGetOpCount( deNode )

Print "Detector entity " & deNode & " has " & opCount & " ray filter operations."

'Get, modify, and set the 0'th operation in the list

success = DEGetIthOp( deNode, 0, rfOp )

rfOp.opCode = 23 'scattered rays

DESetIthOp deNode, 0, rfOp

'Perform analysis with modified ray filter

cnt = DEPerformAnalysis( deNode )

Print "Detector entity analysis results stored in ARN " & DEGetMostRecentARNNum( deNode )

End Sub

Example - Array of T_RAYFILTEROP

Some functions in FRED require an array of T_RAYFILTEROP structures be used as an argument . The example below shows a custom function that accepts a surface node number as an argument and then constructs a T_RAYFILTEROP array that would filter for specular rays on the surface of interest. This custom function then returns the T_RAYFILTEROP array back to the Main subroutine, where the return value is placed in the local tFilter() array variable, and then used in the RedrawRayHistory() function.

Sub Main

Dim surfNode As Long

surfNode = FindFullName( "Geometry.Detectors.Plane.Surface" )

'Construct the ray filter operation list

Dim tFilter() As T_RAYFILTEROP

tFilter() = ConstructFilter( surfNode )

'Redraw ray history

RedrawRayHistory( tFilter() )

End Sub

Function ConstructFilter( ByVal in_surf As Long ) As Variant

'This is a helper function that constructs a ray selection filter

Dim tFilt(1) As T_RAYFILTEROP

'First filter array element

tFilt(0).opCode = 26 'specular rays

'Second filter array element

tFilt(1).opCode = 3 'rays on a specific surface

tFilt(1).stringDatum = GetFullName( in_surf )

Return tFilt()

End Function
