Description
The Rn Distance Position Apodization option scales all rays in the source relative to their distance from the point, P0, defined in the dialog. The rays are scaled by [r / r0]n, where r = | Rp - P0 | is the distance from a given ray position, Rp, to the reference point, P0, as set in the dialog by the X, Y, and Z coordinates. This distance can be normalized with the r0 factor. The exponent, n , can be negative, positive, integer or non-integer.

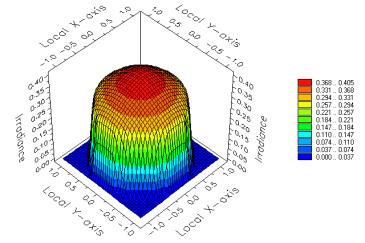

The following image shows a bundle of coherent rays with a 1-inch semi-diameter that have been scaled by [r / r0]n, with n = -2, r = 1, and P0 = [0, 0, 1.5]. Also shown is the source irradiance distribution.
.jpg) .jpg)
Navigation
This feature can be accessed by selecting R^n distance apodization from a given point as the Position Apodization type on the Power tab of a Detailed Source dialog box.
Controls
|
Control
|
Inputs
|
Defaults
|
|
Total Power
|
Total power of the source after both the position and direction apodization functions have been applied to the rays.
|
1
|
|
Position Apodization
|
|
Type
|
Pull down menu of available position apodization options. Choose R^n distance Apodization from a given point.
|
Uniform
|
|
Exp
|
Exponent in the [r / r0]n scale factor.
|
-2
|
|
X
|
X component of the P0 vector, which is used to compute the distance r = | Rp - P0 |.
|
0
|
|
Y
|
Y component of the P0 vector, which is used to compute the distance r = | Rp - P0 |.
|
0
|
|
Z
|
Z component of the P0 vector, which is used to compute the distance r = | Rp - P0 |.
|
1
|
|
Dist
|
Normalization value in the denominator of the scale factor [r / r0]n.
|
1
|
|
Direction Apodization
|
|
Type
|
Pull down menu of available direction apodization options.
|
Uniform
|
|
Parameters
|
There are no parameters for this option.
|
|
|
|
|
OK
|
Accept settings and close the dialog box.
|
|
|
Cancel
|
Discard settings and close the dialog box.
|
|
|
Apply
|
Apply settings and keep the dialog box open.
|
|
|
Help
|
Access this Help page.
|
|
