Description
This feature plots coating transmittance/reflectance/phase versus angle of incidence or wavelength. The plot can be for p-polarization, s-polarization, or their average (and combinations therein).
Navigation
Right mouse click on a coating node in the object tree view and select "Plot" from the list menu.
Controls
|
Control
|
Inputs / Description
|
Defaults
|
|
Insert
|
|
Wavelength
|
Plot transmission/reflection versus wavelength.
|
Selected
|
|
Angle
|
Plot transmission/reflection versus angle of incidence.
|
Not selected
|
|
Media
|
|
Incident Material
|
Media incident ray is immersed in.
|
Air
|
|
Substrate Material
|
Material the coating is applied to.
|
Standard Glass (Schott BK7)
|
|
Plot Parameters
|
|
Incident Angle or Min/Max Angle
|
Incident angle for range of wavelengths or range of incident angles (deg).
|
0 or 0-89.9
|
|
Wavelength or Min/Max Wavelength
|
Wavelength for angle range or range of wavelengths (mm).
|
Center of source wavelength range or source wavelength range
|
|
Plot
|
|
Number of Steps
|
Number of points sampled in plot.
|
101
|
|
Transmit/Reflect
|
Plot transmission or reflection.
|
Selected
|
|
Phase
|
Plot phase.
|
Not selected
|
|
Average
|
Plot average transmission/reflection.
|
Checked
|
|
S-Pol
|
Plot S-Pol transmission/reflection.
|
Unchecked
|
|
P-Pol
|
Plot P-Pol transmission/reflection.
|
Unchecked
|
|
|
|
OK
|
Accept settings and close dialog box.
|
|
|
Cancel
|
Discard settings and close dialog box.
|
|
|
Help
|
Access this Help page.
|
|
Application Notes

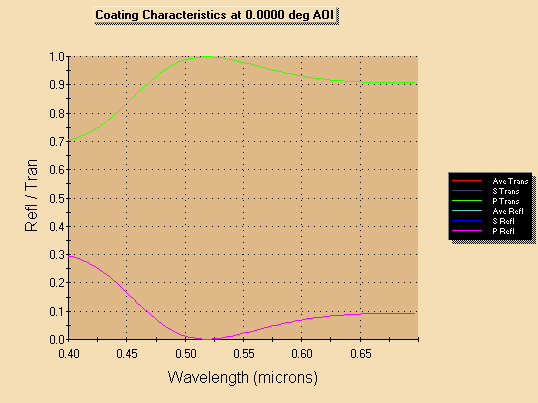

Example plot of 5-layer AR coating
.gif)
