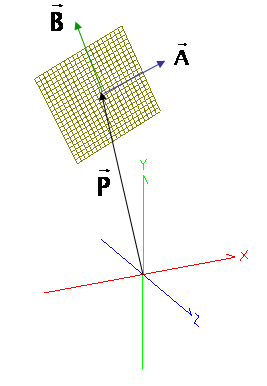

"Energy" calculations such as Irradiance, Intensity, Energy Density, Scalar Field and Color Image all have forms using a T_ANALYSIS structure. T_ANALYSIS specifies a planar area in space in which the Energy calculation is to be carried out. The T_ANALYSIS structure has 13 members: •posX, posY, posZ - components of a vector P which extends from the global origin to the planar area center •AcellX AcellY AcellZ and BcellX BcellY BcellZ - represent components of vectors A and B which define sampling direction and size •Amin, Amax, and Bmin, Bmax - the minimum and maximum indicies of the samples in the A- and B-directions, respectively.
Note that vectors A and B need not be orthogonal.
Critical to "Energy" calculations in the scripting language is an understanding that T_ANALYSIS is always specified in global coordinates, as is all ray data. Unlike an Analysis Surface created in the GUI and "attached" to an entity, T_ANALYSIS is not a complete description of an Analysis Surface. This structure carries with it no local coordinate system information or Ray Specification. As a result, care must be exercised in properly specifying T_ANALYSIS. The following options for specifying the T_ANALYSIS parameters exist in FRED's scripting language.
Centered in Local Coordinate System The script command SetAnalysisParameters populates a centered T_ANALYSIS structure without reference to any existing Analysis Surface. In fact, there need not be an Analysis Surface defined in your FRED model. When T_ANALYSIS is specified in this manner, P = (0,0,0). When an energy calculation is executed, this P vector is converted to the local coordinate system specified by the second argument of Irradiance, Intensity, EnergyDensity, ScalarField or ColorImage commands. For example,
Dim ana As T_ANALYSIS Dim irrad() As Double Dim xh#, yh#, xn&, yn&, sid&, dcenx#, dceny#
xh=2.5: yh=2.5 xn=51: yn=51 sid=FindFullName("Geometry.Elem 1.Surf 4")
SetAnalysisParameters xh, yh, xn, yn, True, ana count = Irradiance(sid, sid, ana, irrad)
This centered area can be shifted or translated by directly editing the posX, posY, posZ members of T_ANALYSIS before the Energy calculation is carried out.
Existing Analysis Surface In Local Coordinates The script command LoadAnalysis populates a T_ANALYSIS structure based upon an existing analysis surface in the document. The TransformPosition and TransformDirection commands are then used to convert the T_ANALYSIS members to the local coordinate system of the entity specified in the second argument of Irradiance, Intensity, EnergyDensity, ScalarField or ColorImage commands. For example,
Dim ana As T_ANALYSIS Dim irrad() As Double Dim aid&, sid&
sid=FindFullName("Geometry.Elem 1.Surf 4") aid=FindFullName("Analysis Surface(s).Analysis 1")
LoadAnalysis aid, ana TransformPosition -1, sid, ana.posX, ana.posY, ana.posZ TransformDirection -1, sid, ana.AcellX, ana.AcellY, ana.AcellZ TransformDirection -1, sid, ana.AcellX, ana.AcellY, ana.AcellZ
count = Irradiance(sid, sid, ana, irrad)
Existing Analysis Surface in Global Coordinates The script command LoadAnalysis populates a T_ANALYSIS structure based upon an analysis surface in the document, and the members of T_ANALYSIS are loaded in the global coordinate system. The second argument of the Irradiance, Intensity, EnergyDensity, ScalarField or ColorImage command is set to -1 (global coordinate system). For example,
Dim ana As T_ANALYSIS Dim irrad() As Double Dim sid&, aid&
sid=FindFullName("Geometry.Elem 1.Surf 4") aid=FindFullName("Analysis Surface(s).Analysis 1")
LoadAnalysis aid, ana count = Irradiance(sid, -1, ana, irrad)
User Specified Analysis Surface The user can individually specify the 13 members of T_ANALYSIS. Note that the values of T_ANALYSIS members are interpreted in the coordinate system of the second argument of the Irradiance, Intensity, EnergyDensity, ScalarField or ColorImage command.
Dim ana As T_ANALYSIS Dim irrad() As Double Dim aid&, sid&
sid=FindFullName("Geometry.Elem 1.Surf 4") ana.posX=0 ana.posY=0 ana.posZ=25.4 ana.AcellX=0.023 ana.AcellY=0 ana.AcellZ=0 ana.BcellX=0 ana.BcellY=0.023 ana.BcellZ=0 ana.Amin=-21 ana.Amax=21 ana.Bmin=-21 ana.Bmax=21 count = Irradiance(sid, sid, ana, irrad)
|
